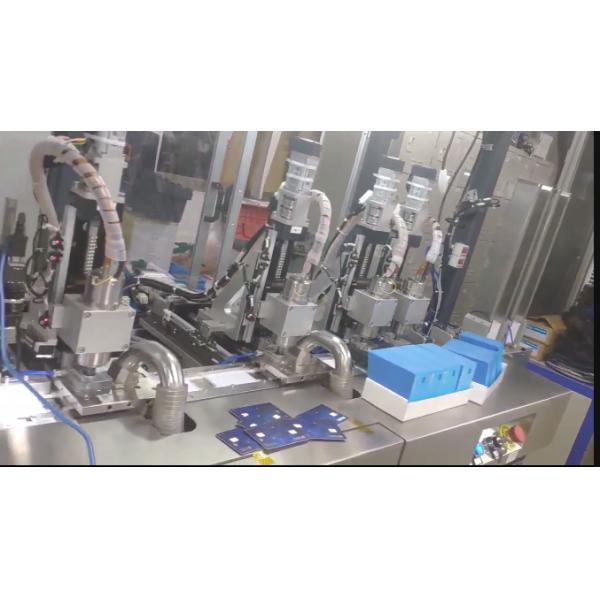

Automatic IC Card Embedding Machine YIE-4000 implanting the punched IC chips into the milled slots or cavities of PVC cards
1. Introduction of Automatic IC Card Embedding Machine YIE-4000 implanting the punched IC chips into the milled slots or cavities of PVC cards
Automatic IC Card Embedding Machine YIE-4000 is designed for embedding or implanting the punched IC chips into the milled slots or cavities of PVC cards in a precise and speedy way. It includes 4 heating heads, 1 cooling head and 1 ATR checking unit. It is controlled by PLC, which can well ensure easy parameter setting and stable performance.
(IC card production machine, IC chip implanter/implanting machine, IC card chip embedding machine, chip placing machine, chip pick-placing machine, Card machine, smart card production machine)
2. Functional configuration of Automatic IC Card Embedding Machine YIE-4000 implanting the punched IC chips into the milled slots or cavities of PVC cards
Basic configuration:
Card feeding magazines (two)-Chip tape convey-punch station-chip pick-place station-heating heads (four)-cooling head (one)-ATR checking station-Card Collection magazines (two)-bad card collection unit
3. Technical Parameter of Automatic IC Card Embedding Machine YIE-4000 implanting the punched IC chips into the milled slots or cavities of PVC cards
Technical Parameters:
| Power supply | AC 220V 50/60 HZ | Control method | PLC + Servo system |
| Total power | 2.5 KW | Card specification | ISO CR80/IEC7810 54x85.6mm |
| Air source | 6kg/cm² (dry) | Dimension | Approximately L1750xW850xH1750 mm |
| Air consumption | Approx. 80L/min | Temperature control range | 0~400℃(can be set) |
| weight | Approx 700Kg | Operator | 1 Person |
| Speed | 3500~4000pcs/h | | |
4. More details of Automatic IC Card Embedding Machine YIE-4000 implanting the punched IC chips into the milled slots or cavities of PVC cards
- Special servo motor stepping system is applied to convey and punch IC chip tapes, which can ensure precise and stable performance. The parameters are adjustable in an easy way.
- Heating station is used for heating and melt the glue behind the chip, and its temperature and pressure is adjustable.
- IC Module stepping is automatically monitored and controlled by the sensor system, and the bad chips can be automatically removed before embedding.
- It applied PLC program as control system, which can ensure speedy and stable performance of the machine. If there are any errors occurring, the machine will alert and stop automatically.
- The unique ATR system is to check the embedding chip performance. If the chip is found bad by ATR, the bad card will be rejected automatically.
Our service :
Pre-sale
(1) Professional suggestions (raw material matching, machine selection, the condition of building factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material, capacity and the size of brick)
(3) Efficient on-line service
(4) Welcome to visit our factory and production line any time, if you need, we can make invitation letter for you.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale:
(1) The engineer will guide to carry out the plant at the clients side if needed.
(2) Set up, fix, and operate
(3) offer training to the operator until they are satisfied at clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time ,keep well communication with each other
Guarantee
(1)We can supply one year guarantee period for our card machines, if the client have any question ,they could contact our service department any time ,we will supply efficient service .
(2)Within one year ,if the client meet the unsolvable questions ,we can make site supporting.
